23126CAME4

Spherical Roller Bearings
Spherical Roller Bearings

Product Information

Designations

23126CAME4

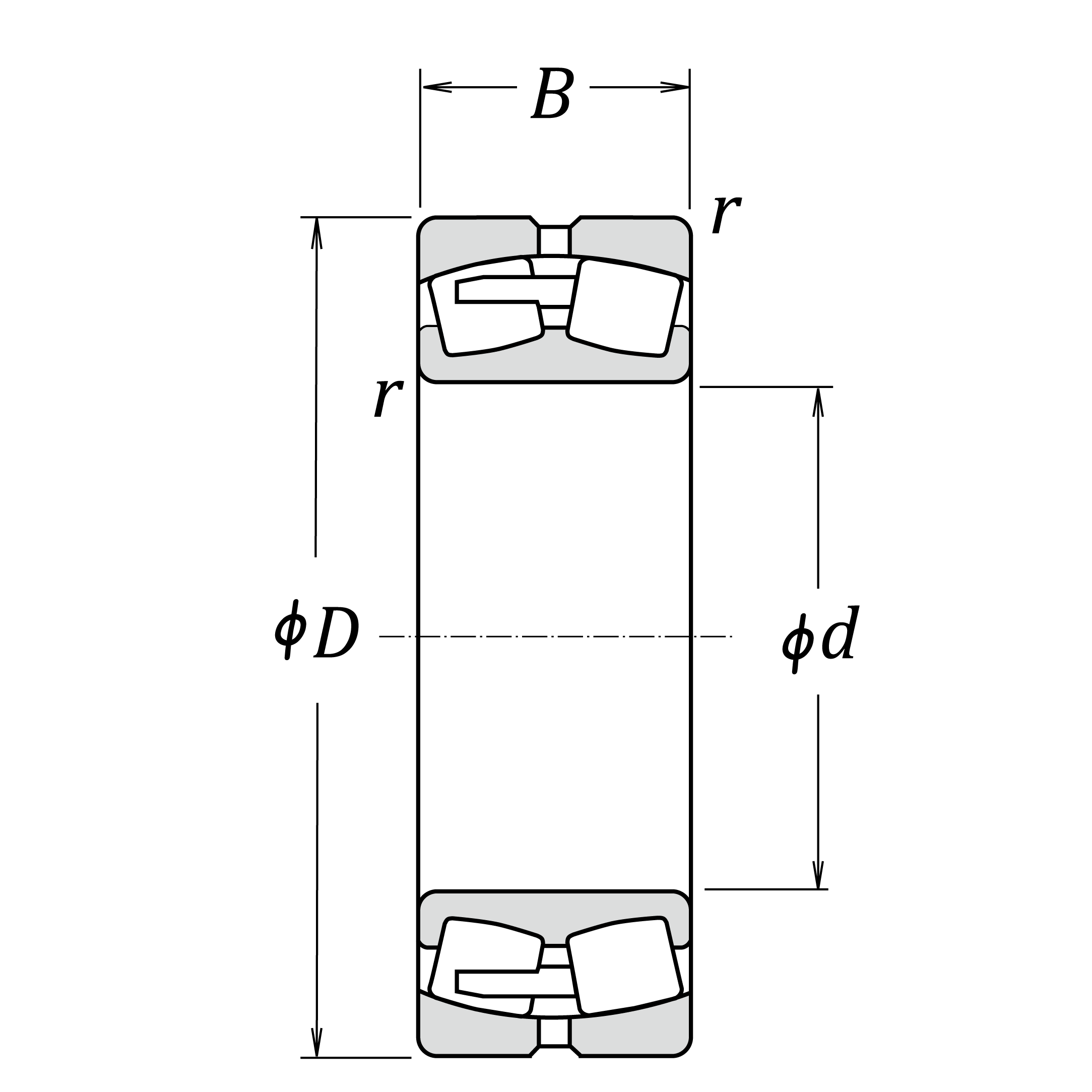

Boundary Dimensions

d 130 mm
D 210 mm
B 64 mm
r (min.） 2 mm

Basic Load Ratings

Cr 630000 N Basic dynamic load rating
C0r 825000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 2600 min-1
Mechanical (forced-circulation oil) 3400 min-1
Grease 1300 min-1

Dimensions

Abutment and Fillet Dimensions

da (min.) 140 mm
Da (min.) 184 mm
Da(max.) 200 mm
ra (max.) 2 mm

Calculation factors

e 0.28
Y2 3.6
Y3 2.4
Y0 2.4

Additional information

Mass

(approx.) 8.69 kg
