22205CE4

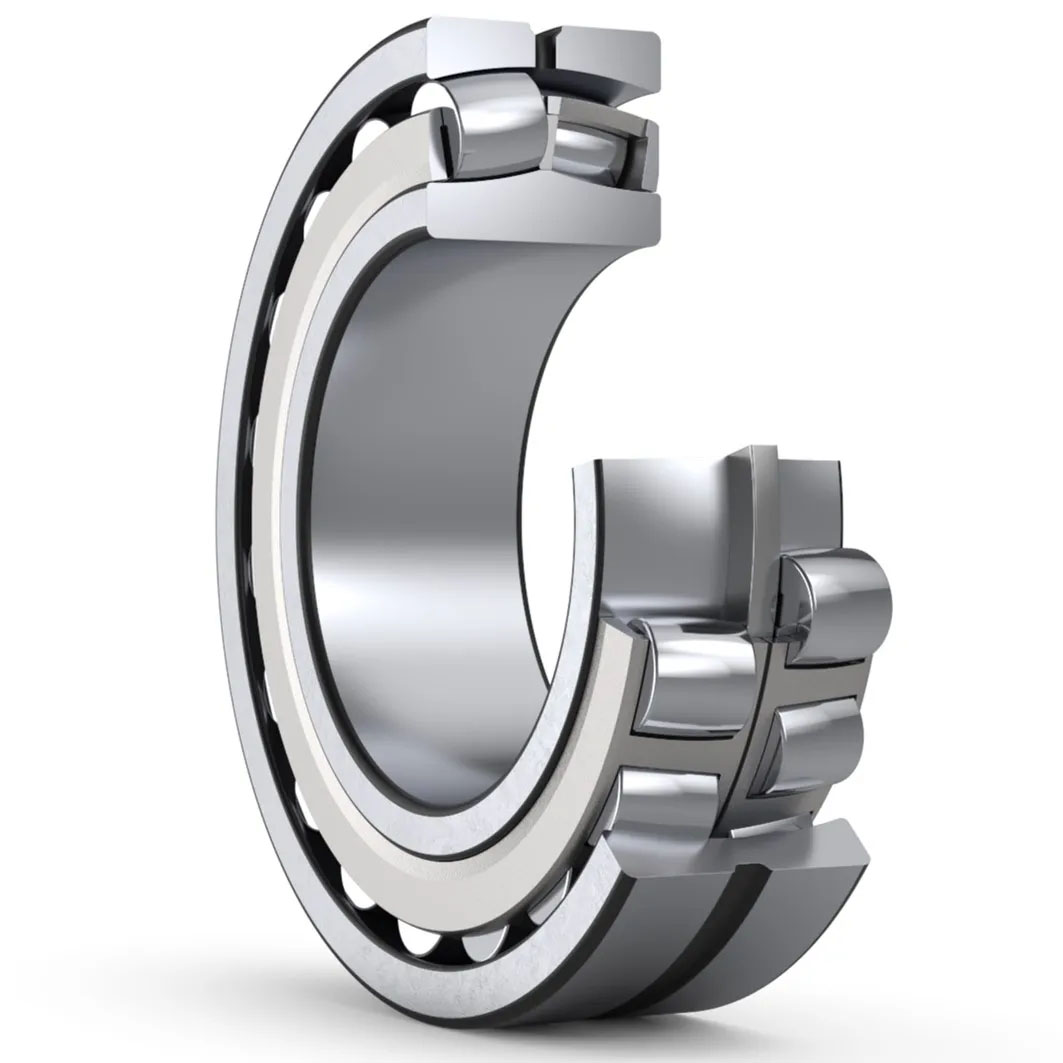

Spherical Roller Bearings
Spherical Roller Bearings

Product Information

Designations

22205CE4

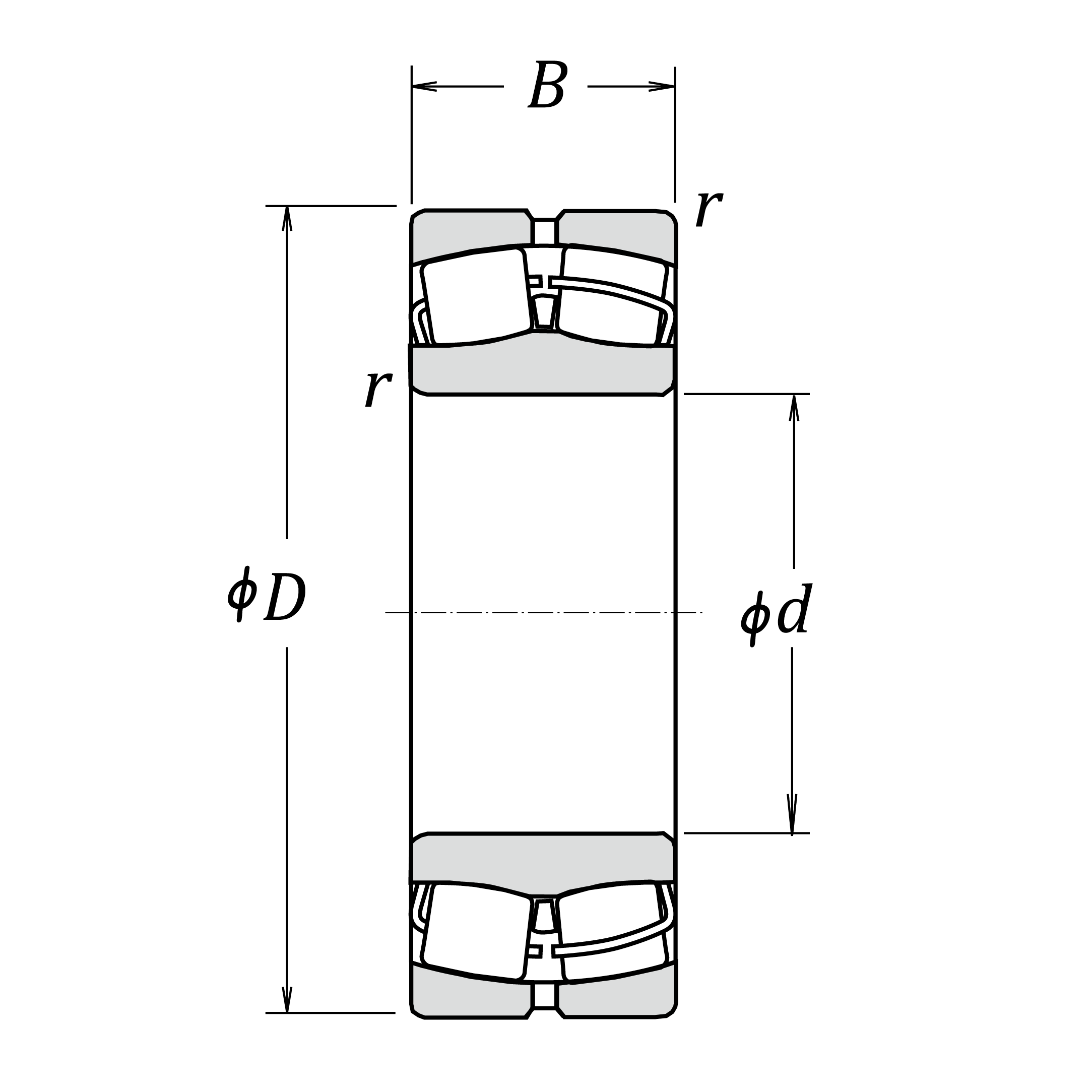

Boundary Dimensions

d 25 mm
D 52 mm
B 18 mm
r (min.） 1 mm

Basic Load Ratings

Cr 37500 N Basic dynamic load rating
C0r 37000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 10000 min-1
Grease 7100 min-1
Oil 9000 min-1

Dimensions

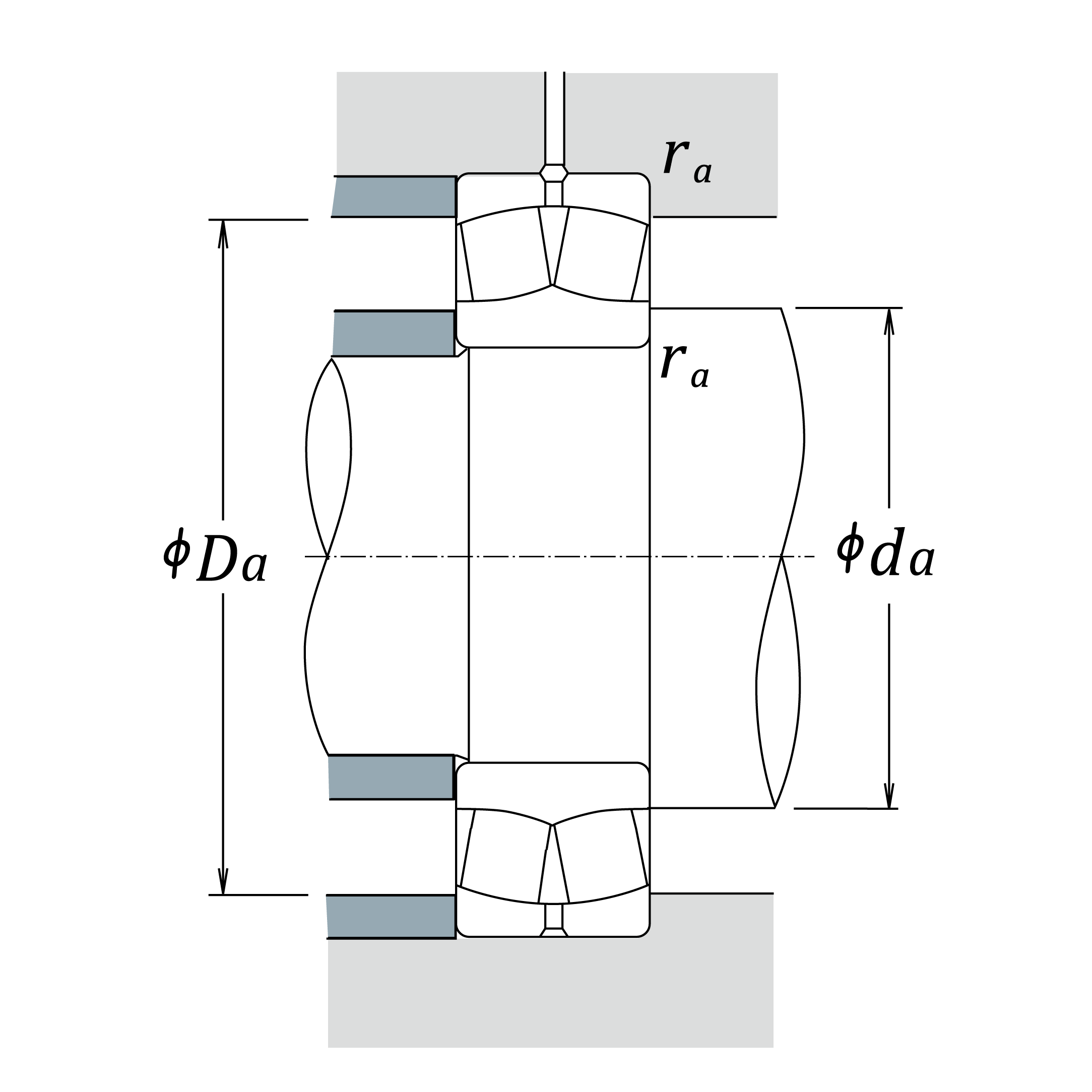

Abutment and Fillet Dimensions

da (min.) 31 mm
da (max.) 31 mm
Da (min.) 45 mm
Da(max.) 46 mm
ra (max.) 1 mm

Calculation factors

e 0.35
Y2 2.9
Y3 1.9
Y0 1.9

Additional information

Mass

(approx.) 0.17 kg
