130KBE030+L

Double-Row Tapered Roller Bearings/Arrangements
Double-Row Tapered Roller Bearings/Arrangements

Product Information

Designations

130KBE030+L

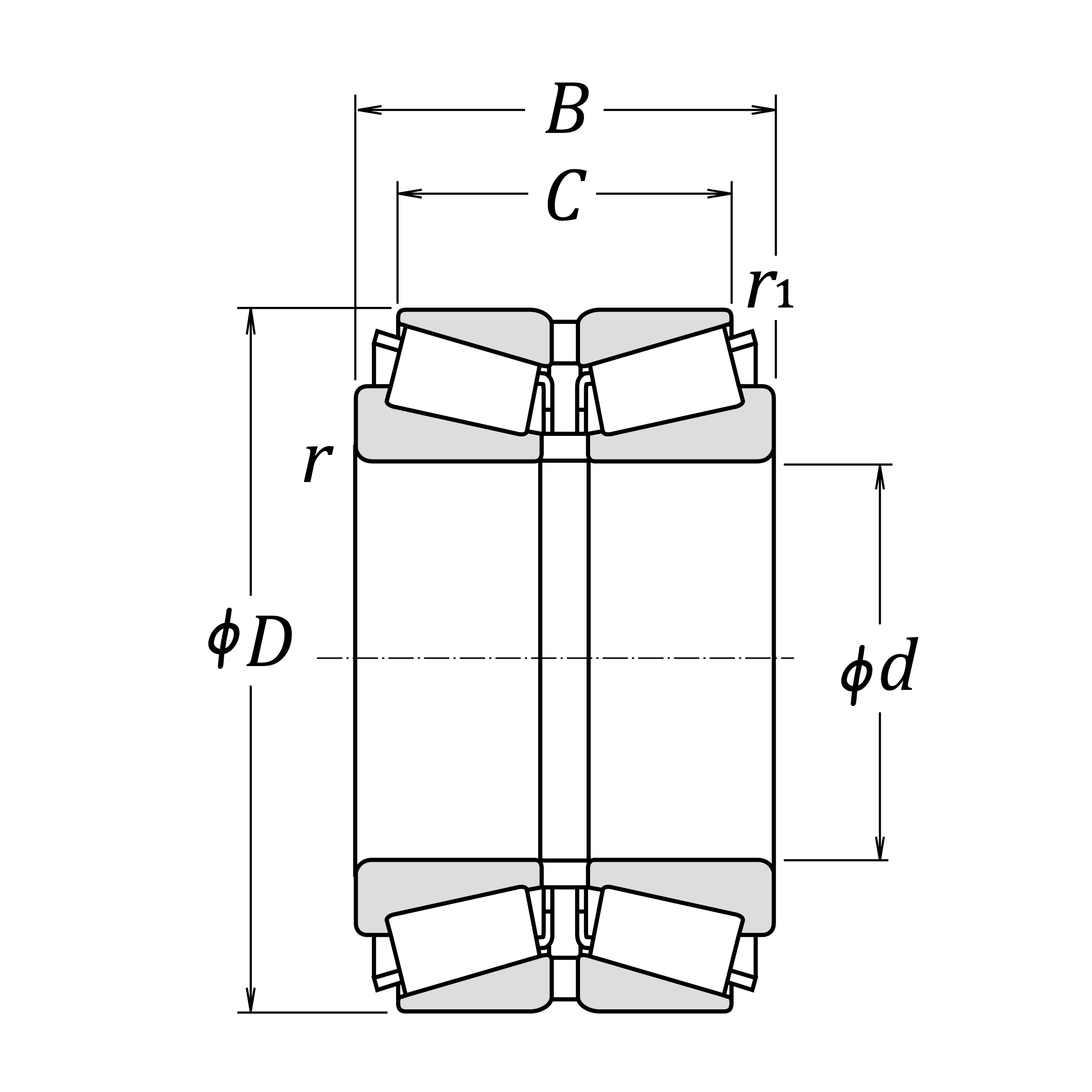

Boundary Dimensions

d 130 mm
D 200 mm
C 52 mm
2B 65 mm
r (min.） 2.5 mm
r1 (min.) 0.6 mm

Basic Load Ratings

Cr 395000 N Basic dynamic load rating
C0r 540000 N Basic static load rating

Speeds

Grease 1300 min-1
Oil 1800 min-1

Dimensions

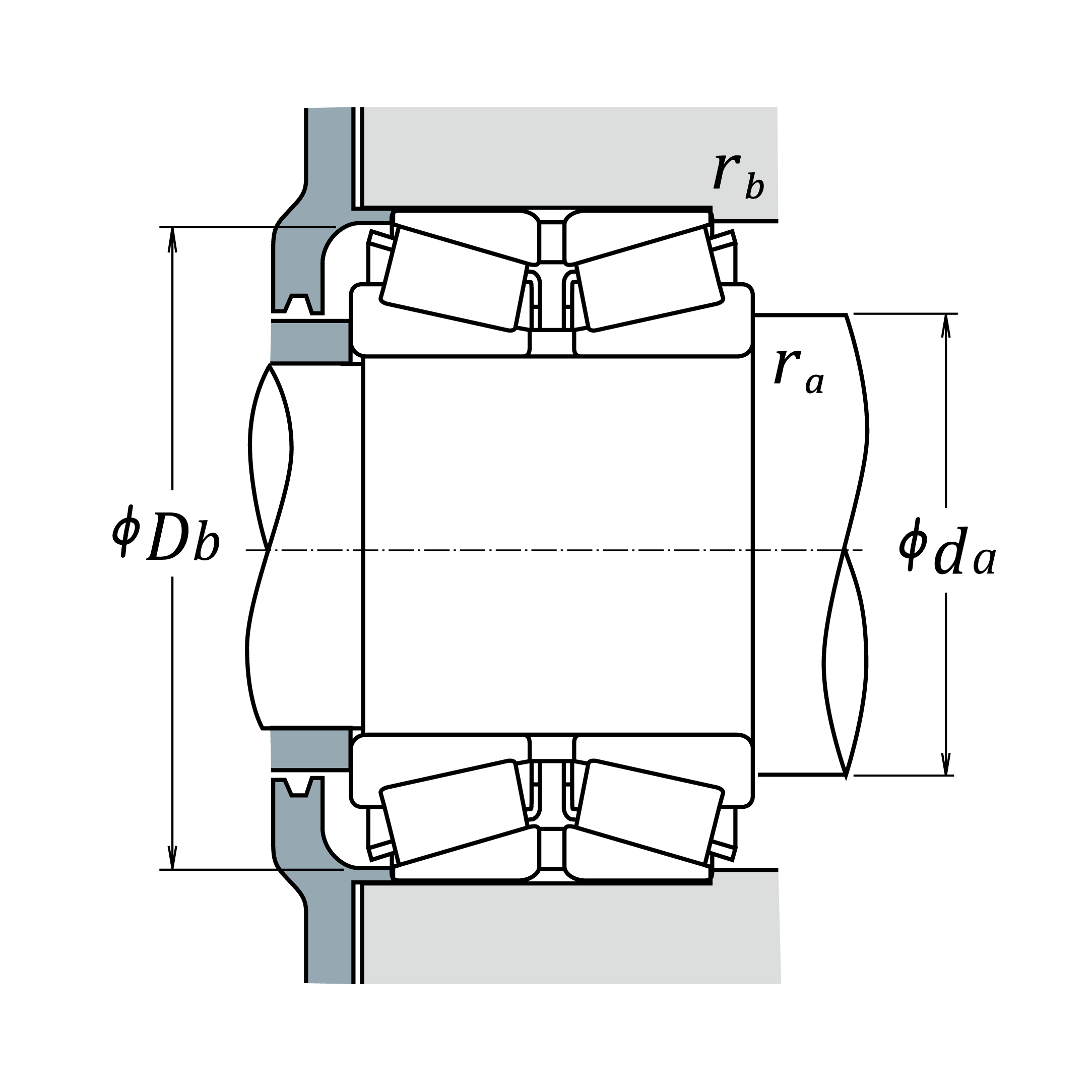

Abutment and Fillet Dimensions

da (min.) 145 mm
Db(min.) 192 mm
ra (max.) 2 mm
rb (max.) 0.6 mm

Calculation factors

e 0.39
Y2 2.6
Y3 1.7
Y0 1.7

Additional information

Mass

(approx.) 6.45 kg
