NN3005

Double-Row Cylindrical Roller Bearings
Double-Row Cylindrical Roller Bearings

Product Information

Designations

NN3005

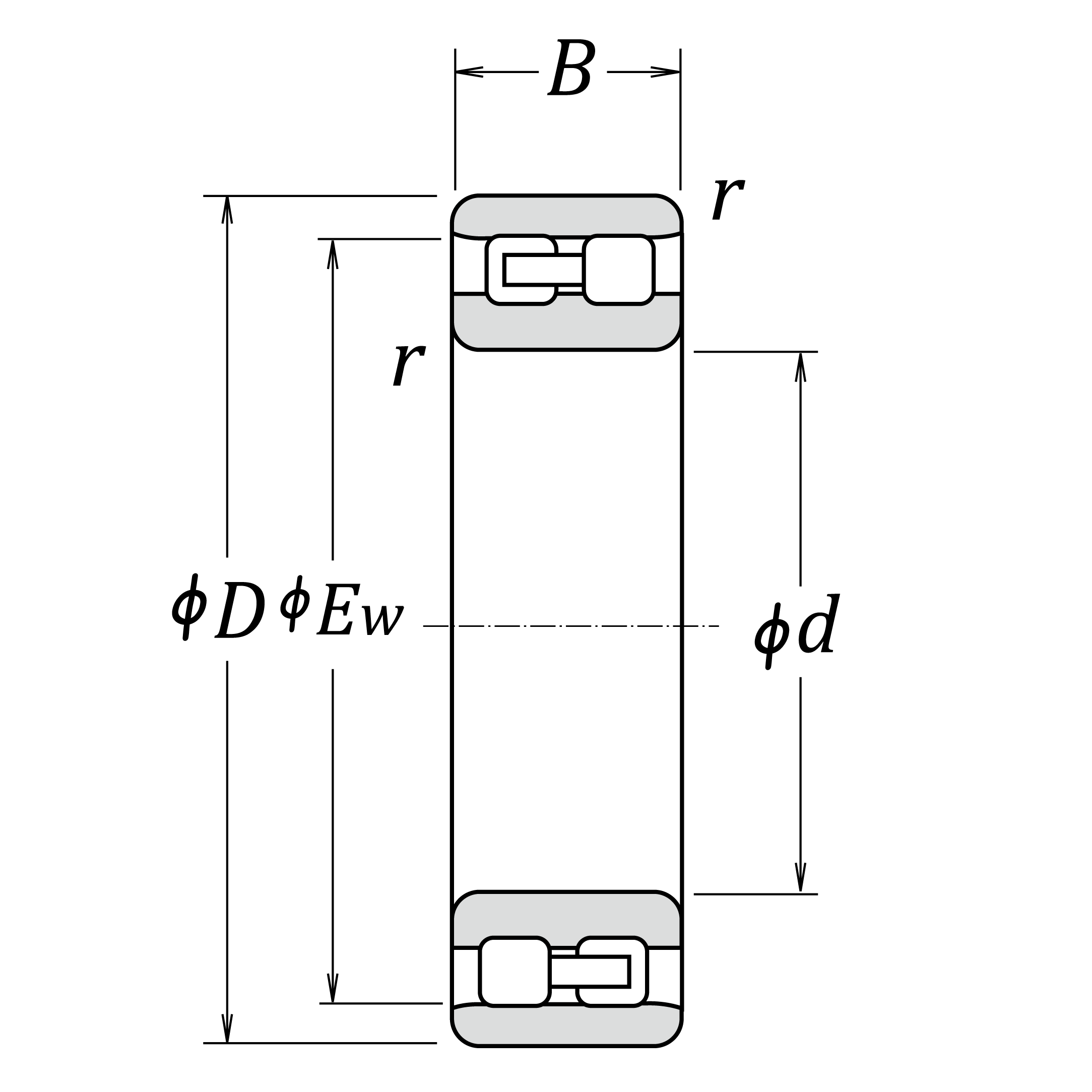

Boundary Dimensions

d 25 mm
D 47 mm
B 16 mm
EW 41.3 mm
r (min.） 0.6 mm

Basic Load Ratings

Cr 31500 N Basic dynamic load rating
C0r 30000 N Basic static load rating

Speeds

Grease 14000 min-1
Oil 17000 min-1

Dimensions

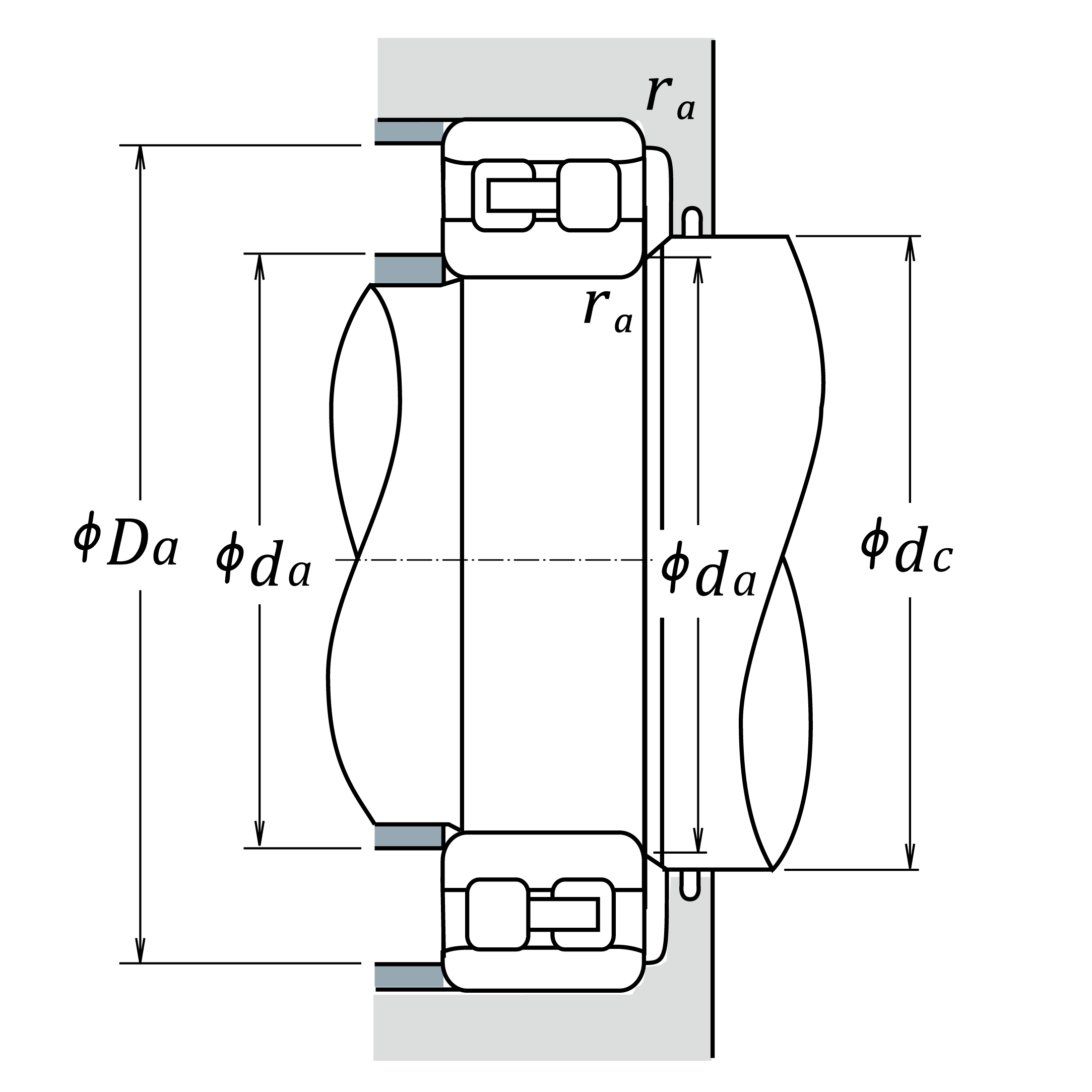

Abutment and Fillet Dimensions

da (min.) 29 mm
d1a (min.) 29 mm
Da (min.) 42 mm
Da(max.) 43 mm
ra (max.) 0.6 mm

Calculation factors

Additional information

Mass

(approx.) 0.127 kg
