NUP2304ET7

Single-Row Cylindrical Roller Bearings
Single-Row Cylindrical Roller Bearings

Product Information

Designations

NUP2304ET7

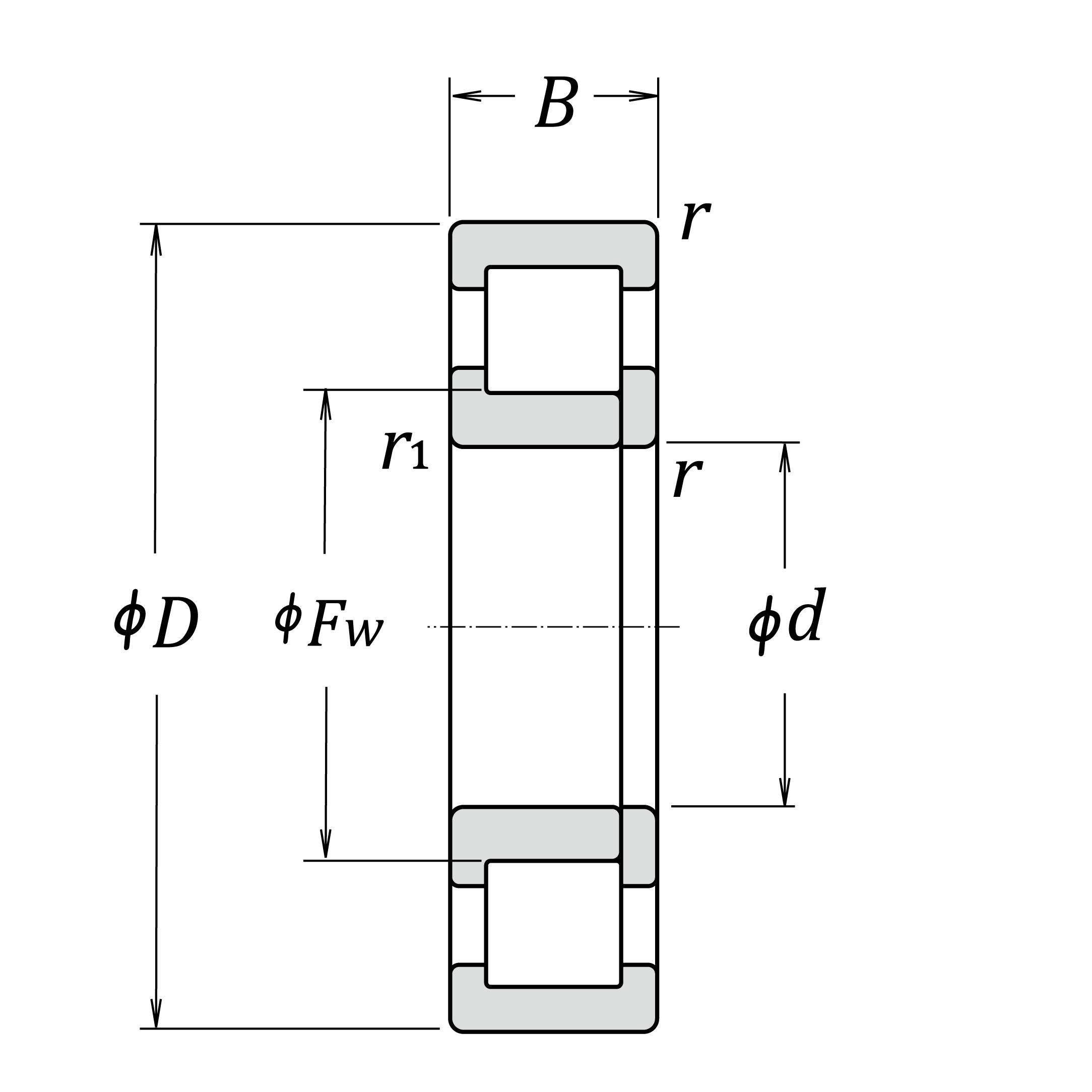

Boundary Dimensions

d 20 mm
D 52 mm
B 21 mm
FW 27.5 mm
r (min.） 1.1 mm
r1 (min.) 0.6 mm

Basic Load Ratings

Cr 51500 N Basic dynamic load rating
C0r 39000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 13000 min-1
Grease 11000 min-1
Oil 14000 min-1

Dimensions

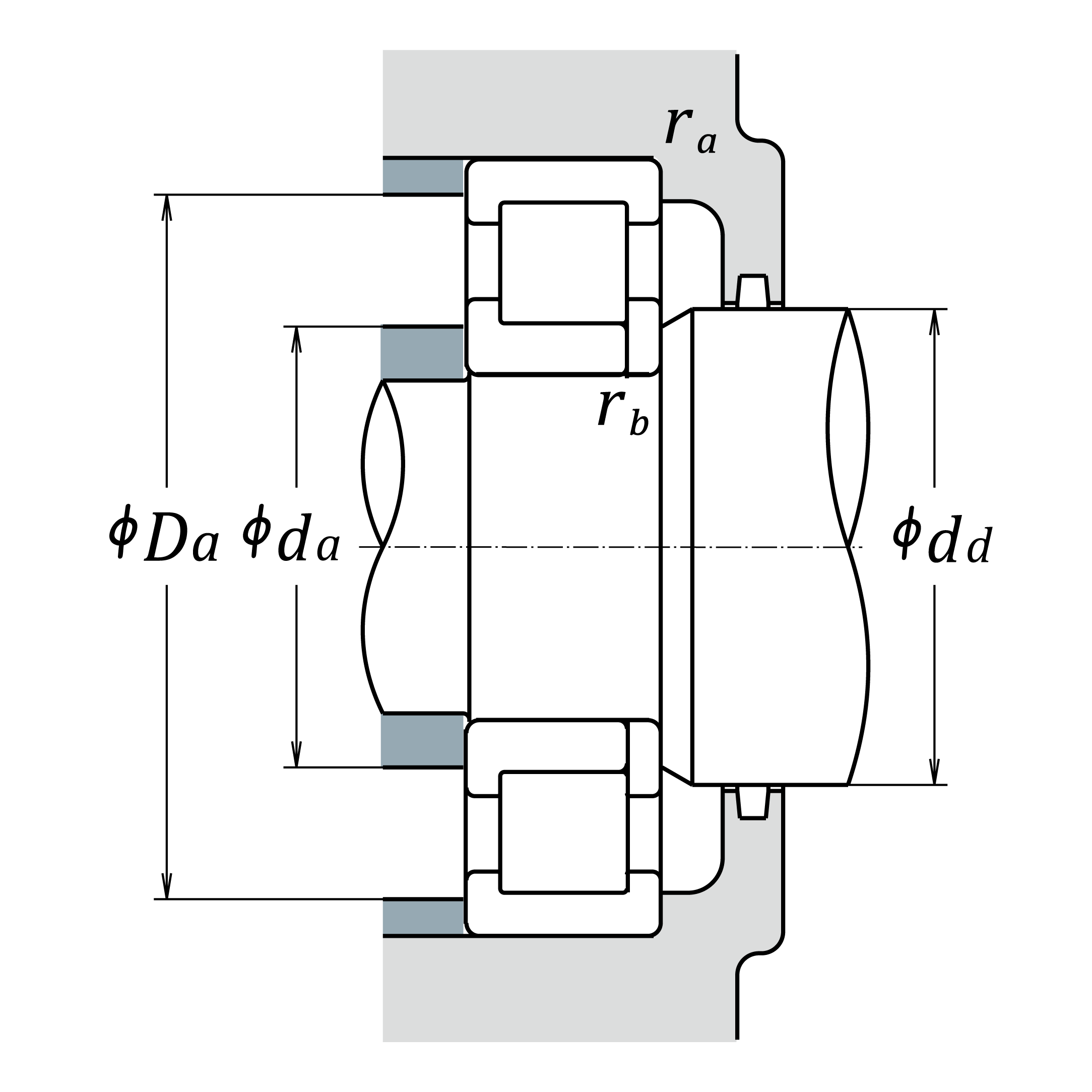

Abutment and Fillet Dimensions

da (min.) 26.5 mm
dd(min) 33 mm
Da(max.) 45.5 mm
ra (max.) 1 mm
rb (max.) 0.6 mm

Calculation factors

Additional information

Mass

(approx.) 0.213 kg
