Single-Direction Thrust Ball Bearings
Single-Direction Thrust Ball Bearings

Product Information

Designations

51201

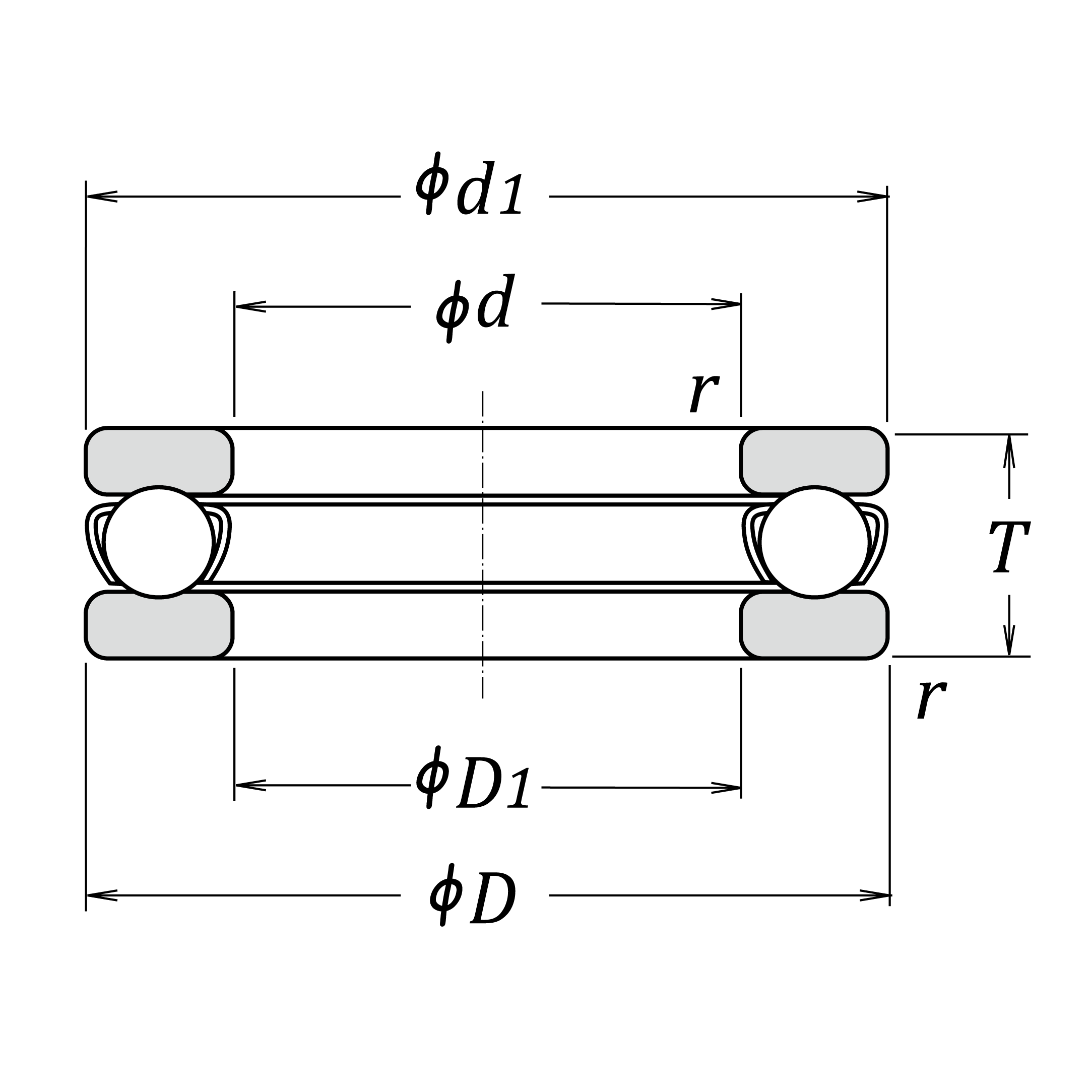

Boundary Dimensions

d 12 mm
D 28 mm
T,T3 11 mm
r (min.） 0.6 mm

Basic Load Ratings

Cr 13300 N Basic dynamic load rating
C0r 19000 N Basic static load rating

Speeds

Grease 5600 min-1
Oil 8500 min-1

Dimensions

d1 28 mm
D1 14 mm

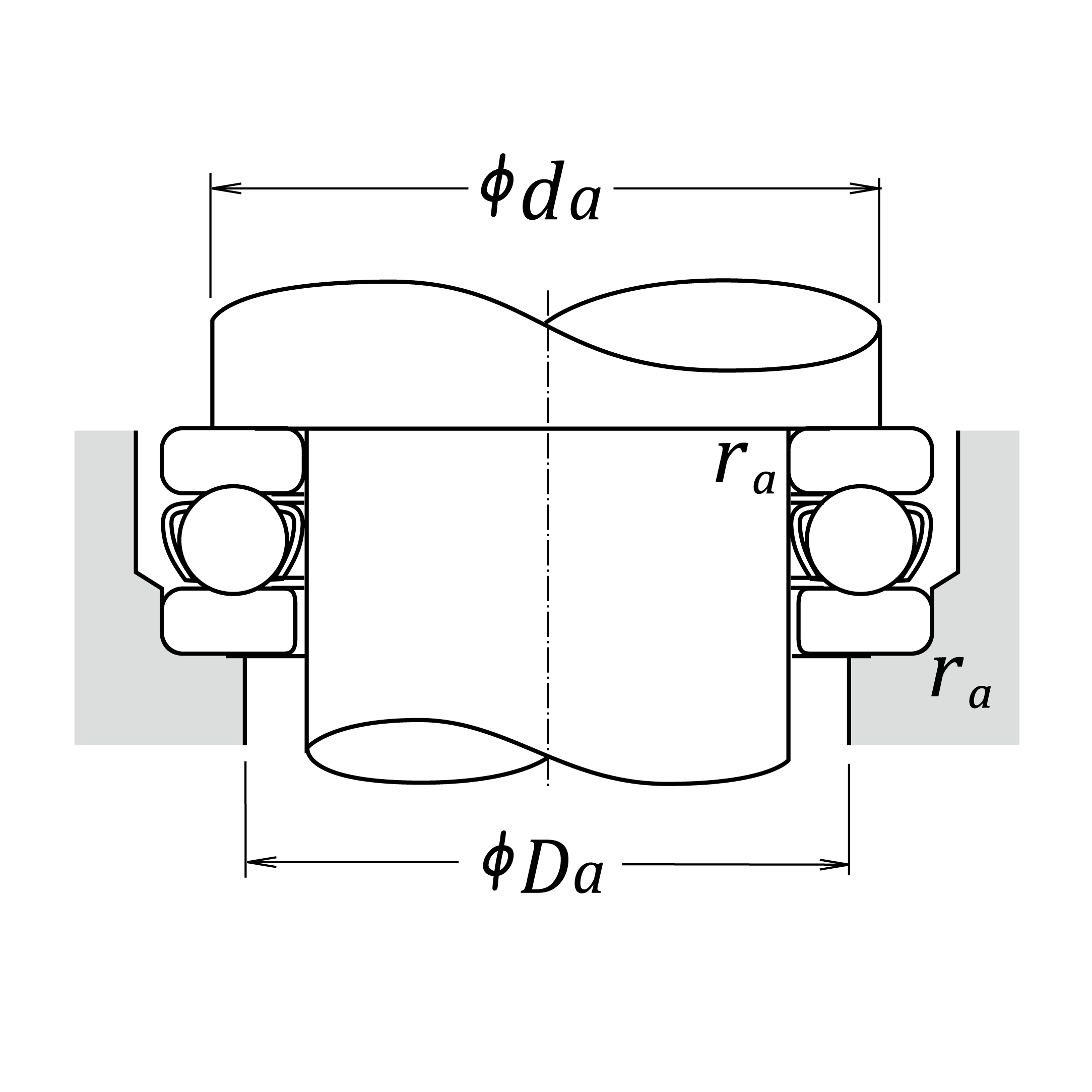

Abutment and Fillet Dimensions

da (min.) 22 mm
Da(max.) 18 mm
ra (max.) 0.6 mm

Calculation factors

Additional information

Mass

(approx.) 0.031 kg
