1204K

Self-Aligning Ball Bearings
Self-Aligning Ball Bearings

Product Information

Designations

1204K

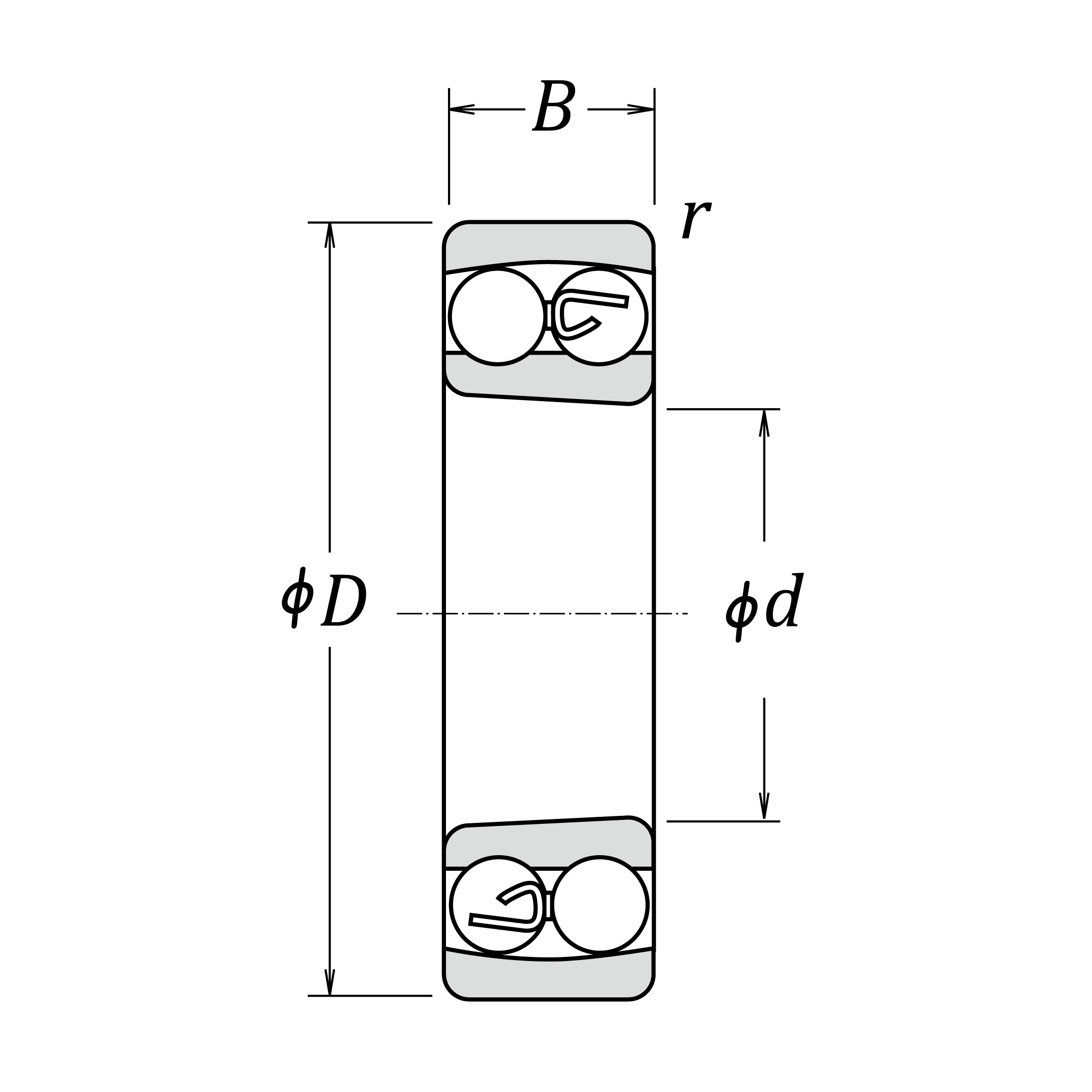

Boundary Dimensions

d 20 mm
D 47 mm
B 14 mm
r (min.） 1 mm

Basic Load Ratings

Cr 11000 N Basic dynamic load rating
C0r 2610 N Basic static load rating

Speeds

Grease 14000 min-1
Oil 17000 min-1

Dimensions

Abutment and Fillet Dimensions

da (min.) 25 mm
Da(max.) 42 mm
ra (max.) 1 mm

Calculation factors

e 0.29
Y2 3.4
Y3 2.2
Y0 2.3

Additional information

Mass

(approx.) 0.12 kg
