6900

Single-Row Deep Groove Ball Bearings
Single-Row Deep Groove Ball Bearings

Product Information

Designations

6900

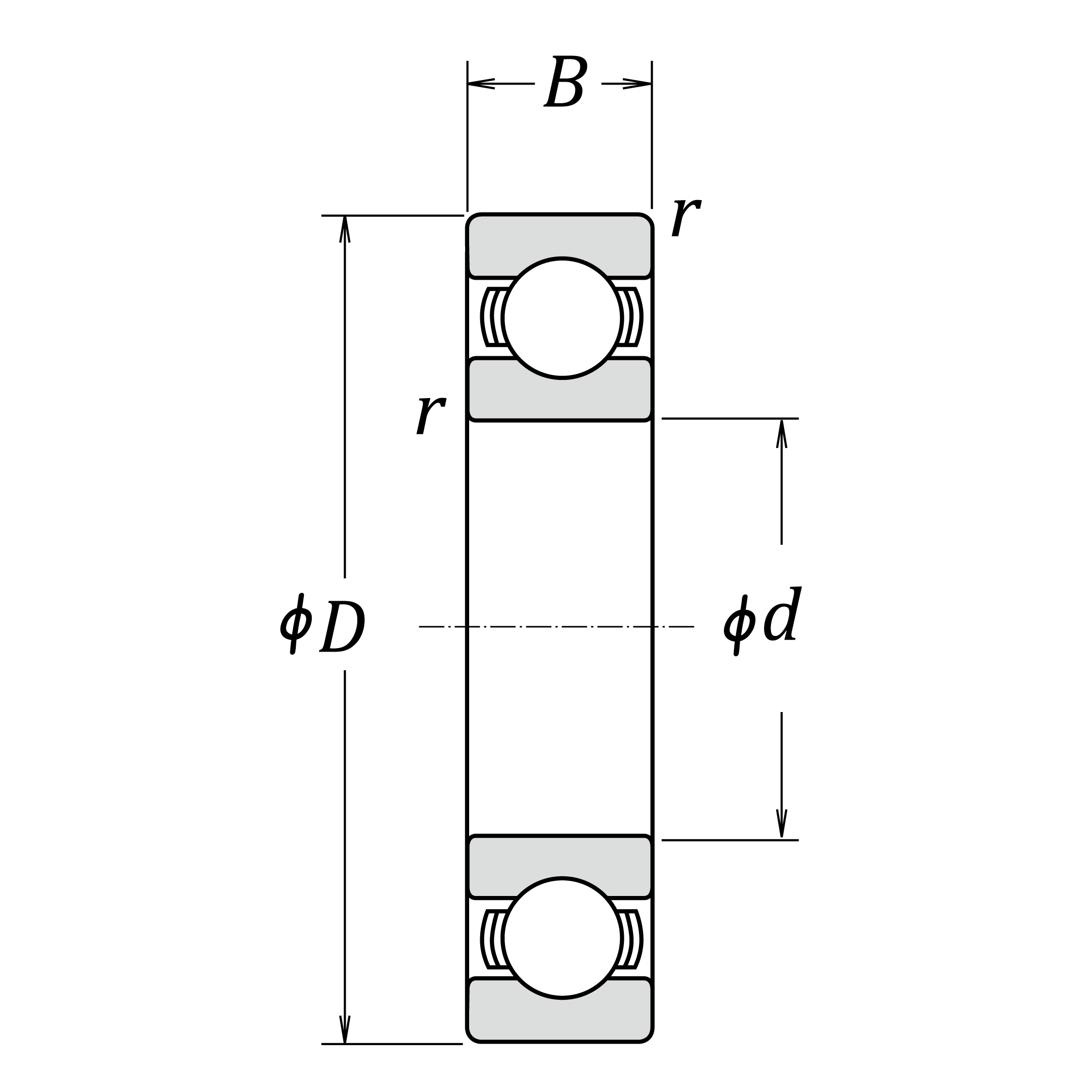

Boundary Dimensions

d 10 mm
D 22 mm
B 6 mm
r (min.） 0.3 mm

Basic Load Ratings

Cr 2970 N Basic dynamic load rating
C0r 1270 N Basic static load rating

Speeds

Grease 32000 min-1
Oil 38000 min-1

Dimensions

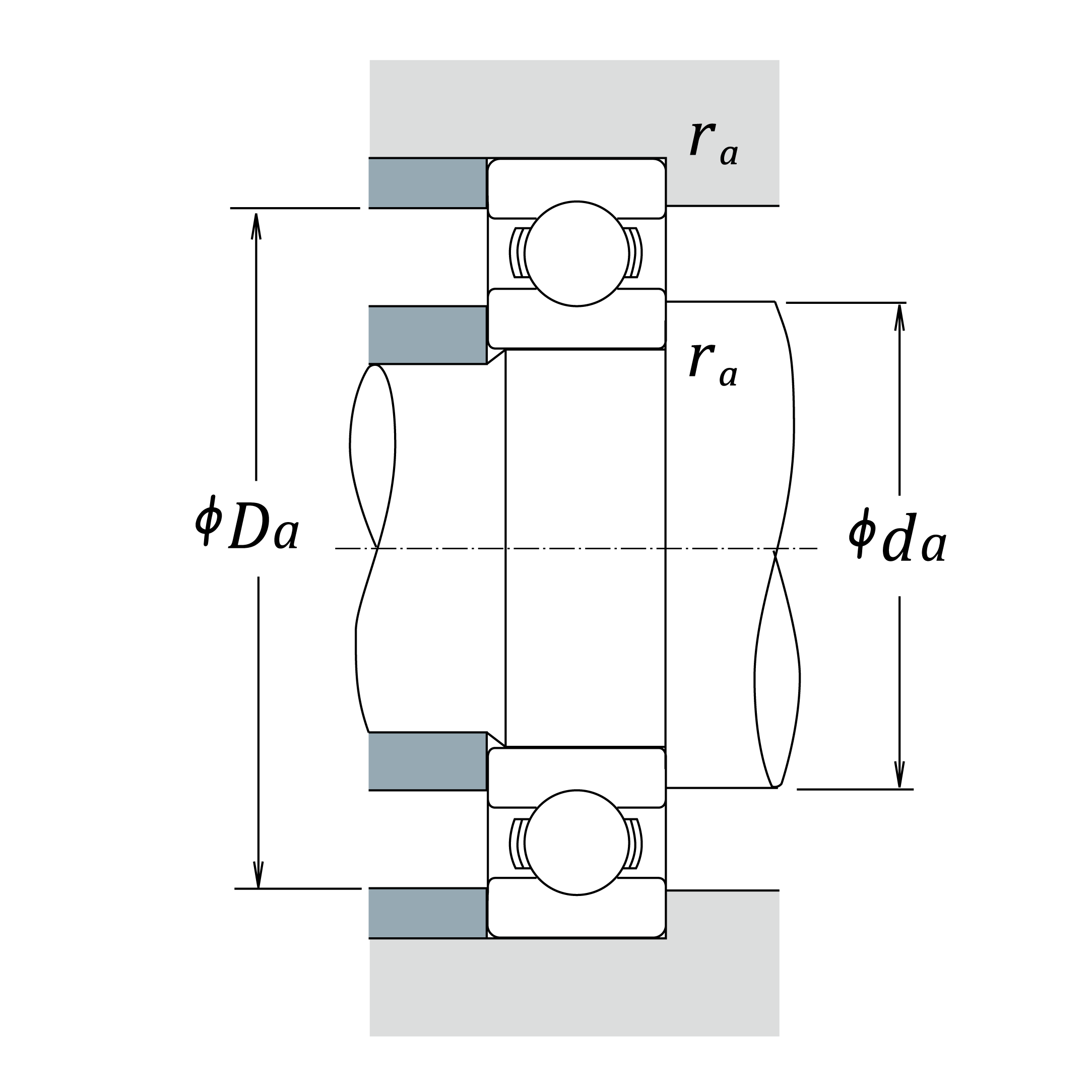

Abutment and Fillet Dimensions

da (min.) 12 mm
da (max.) 12.5 mm
Da(max.) 20 mm
ra (max.) 0.3 mm

Calculation factors

fo 14

Additional information

Z 9
DW 3.175 mm

Mass

(approx.) 0.009 kg
