7201BWDT

Matched Angular Contact Ball Bearings
Matched Angular Contact Ball Bearings

Product Information

Designations

7201BWDT

Boundary Dimensions

d 12 mm
D 32 mm
r (min.） 0.6 mm
r1 (min.) 0.3 mm

Basic Load Ratings

Cr 13300 N Basic dynamic load rating
C0r 7500 N Basic static load rating

Speeds

Grease 12000 min-1
Oil 16000 min-1

Dimensions

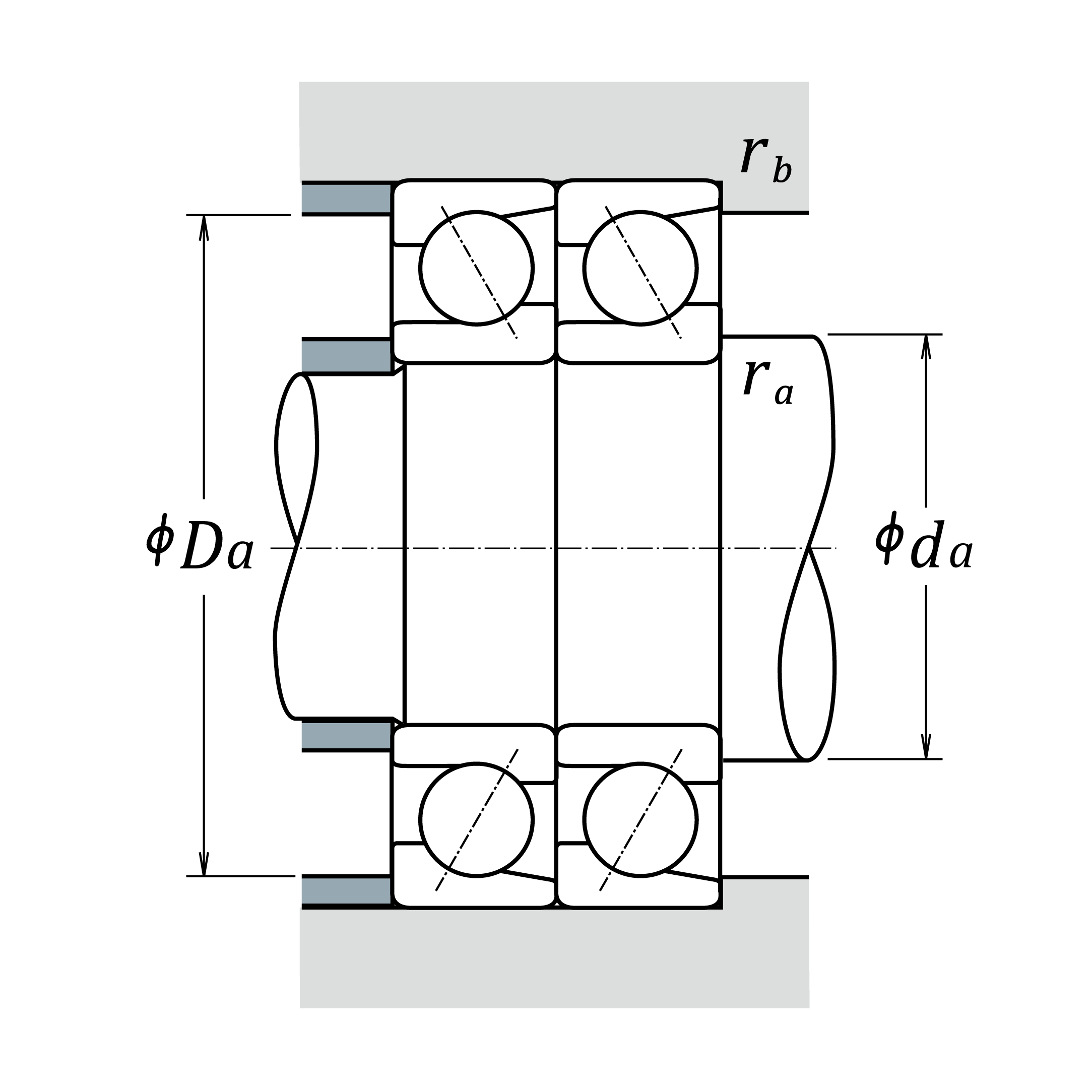

Abutment and Fillet Dimensions

da (min.) 17 mm
Da(max.) 27 mm
ra (min.) 0.6 mm

Calculation factors

Additional information

Mass

(approx.) 0.076 kg
