7201BWDB

Matched Angular Contact Ball Bearings

Matched Angular Contact Ball Bearings

Product Information

Designations

7201BWDB

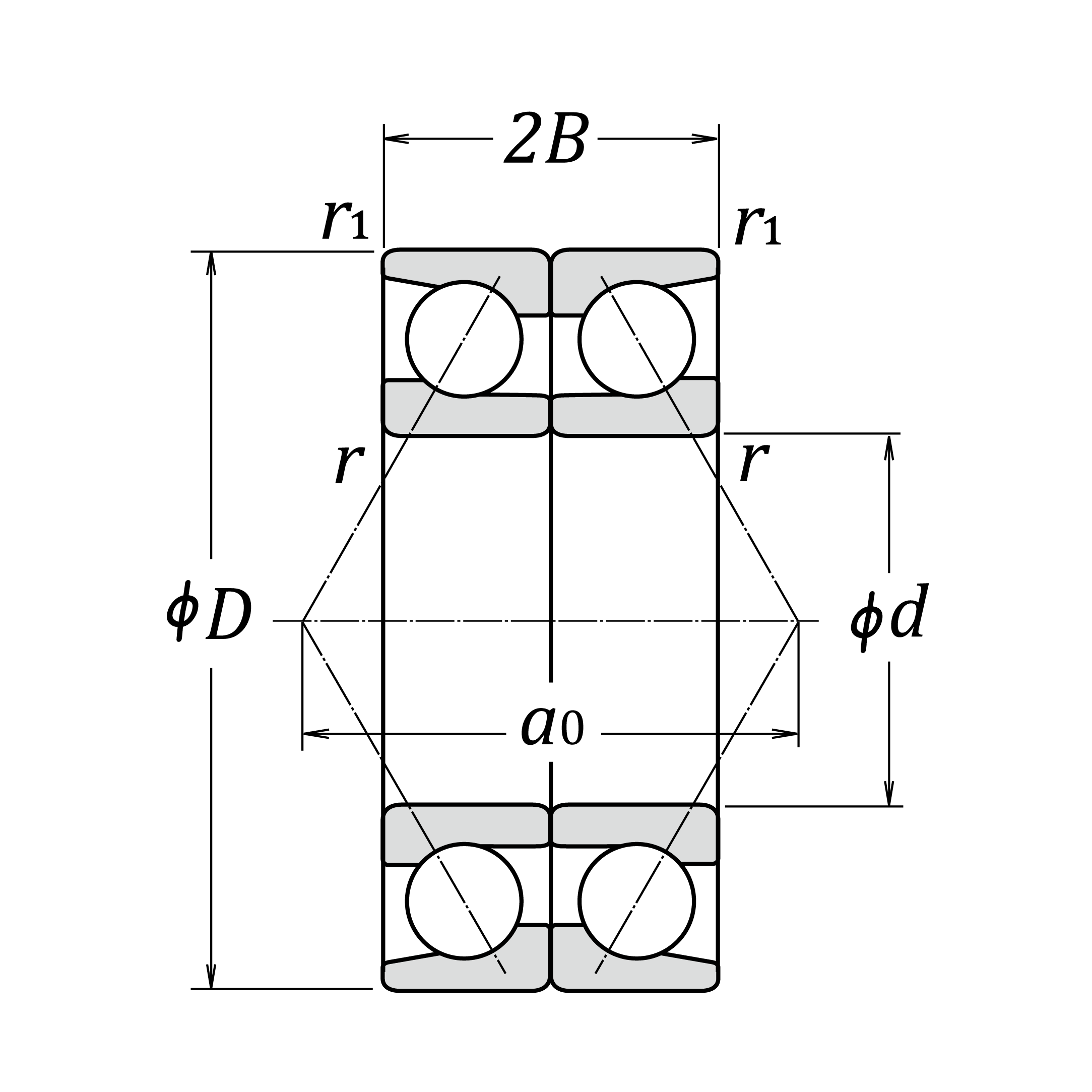

Boundary Dimensions

d	12	mm
D	32	mm
r (min.）	0.6	mm
r1 (min.)	0.3	mm

Basic Load Ratings

C_r	13300	N	Basic dynamic load rating
C_0r	7500	N	Basic static load rating

Speeds

Grease	12000	min-1
Oil	16000	min-1

Dimensions

a0

28.5

mm

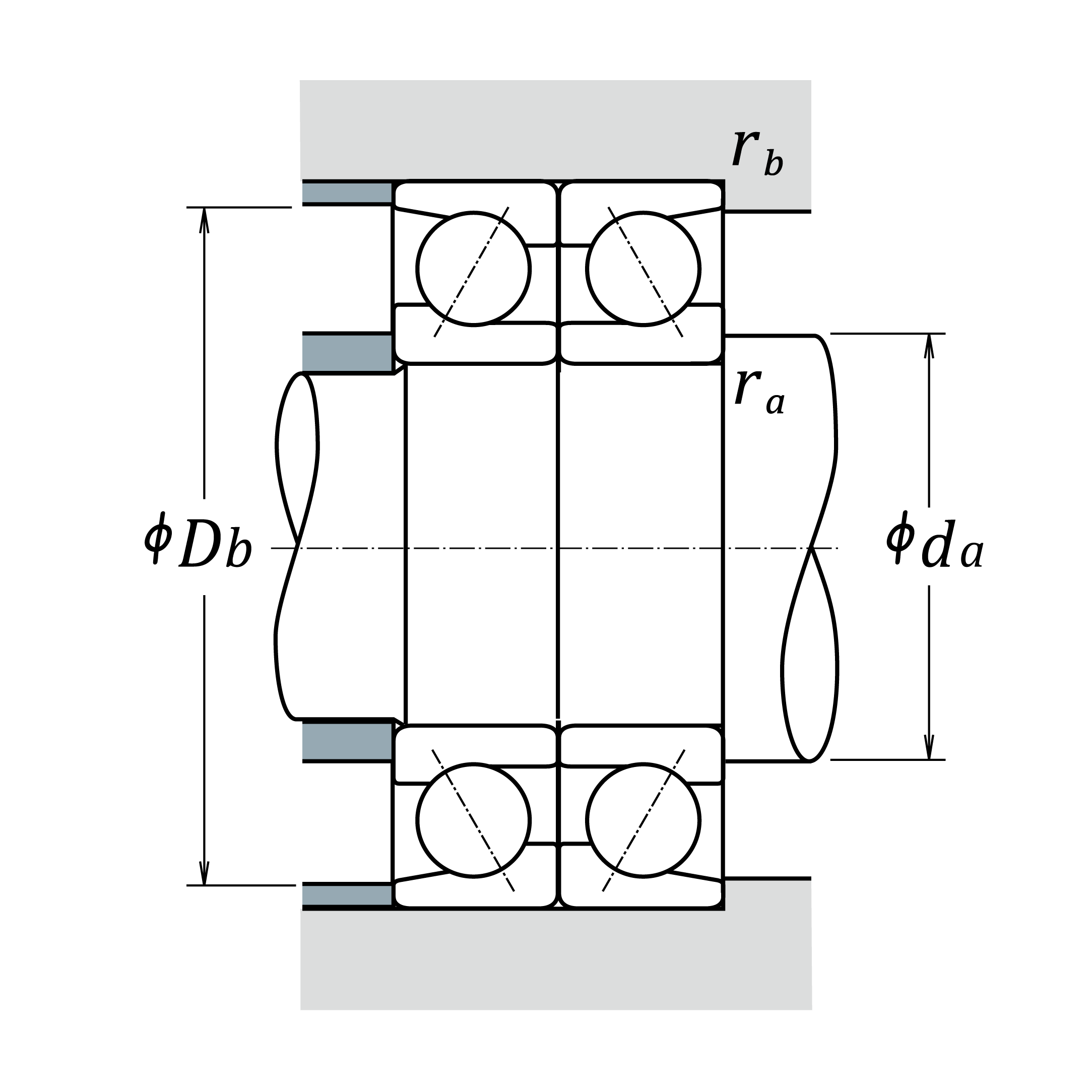

Abutment and Fillet Dimensions

da (min.)	17	mm
Db(max.)	29.5	mm
ra (min.)	0.6	mm
rb (max.)	0.3	mm

Calculation factors

Additional information

Mass

(approx.)

0.076

kg
