7001AWDF

Matched Angular Contact Ball Bearings
Matched Angular Contact Ball Bearings

Product Information

Designations

7001AWDF

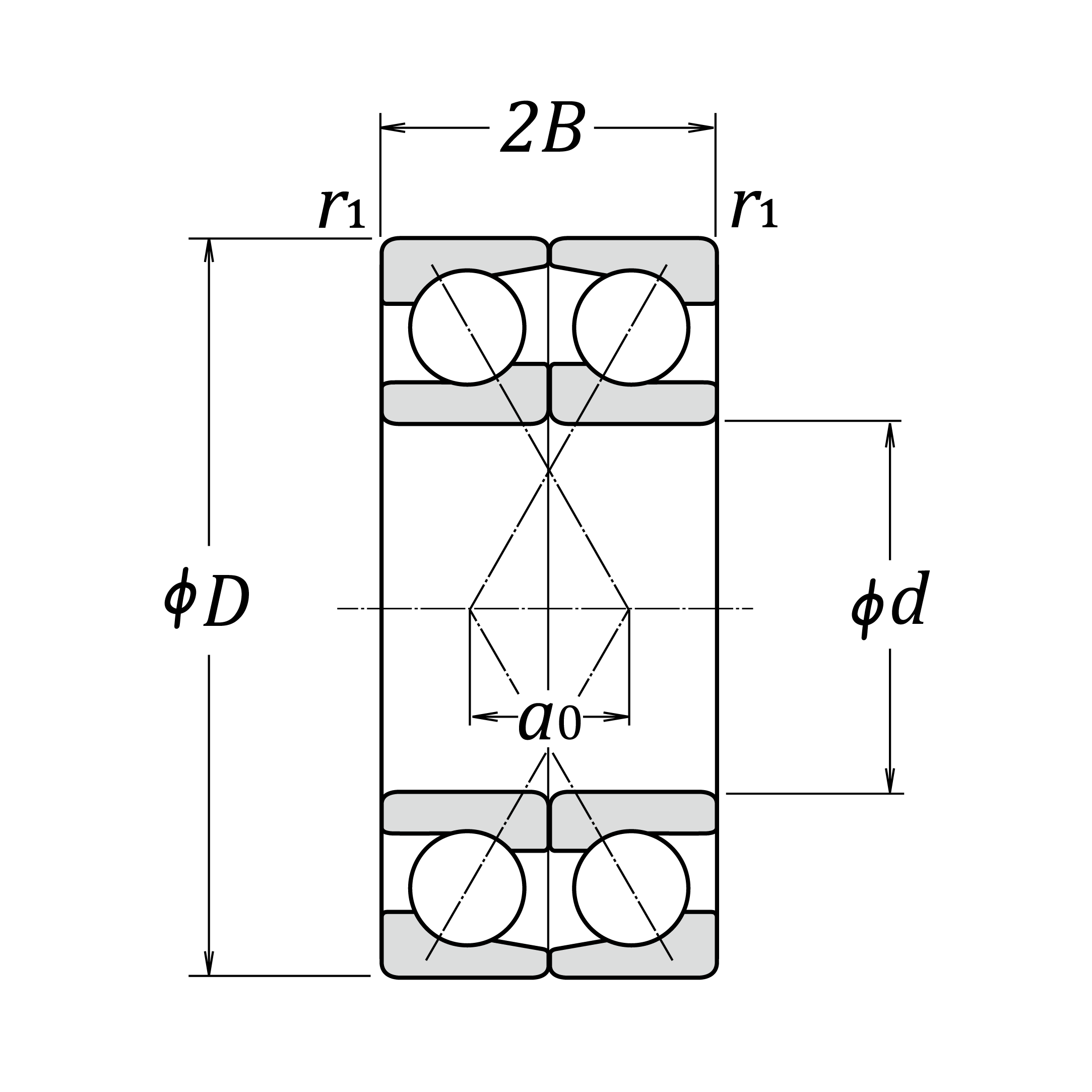

Boundary Dimensions

d 12 mm
D 28 mm
r (min.） 0.3 mm
r1 (min.) 0.15 mm

Basic Load Ratings

Cr 10300 N Basic dynamic load rating
C0r 5950 N Basic static load rating

Speeds

Grease 18000 min-1
Oil 24000 min-1

Dimensions

a0 3.5 mm

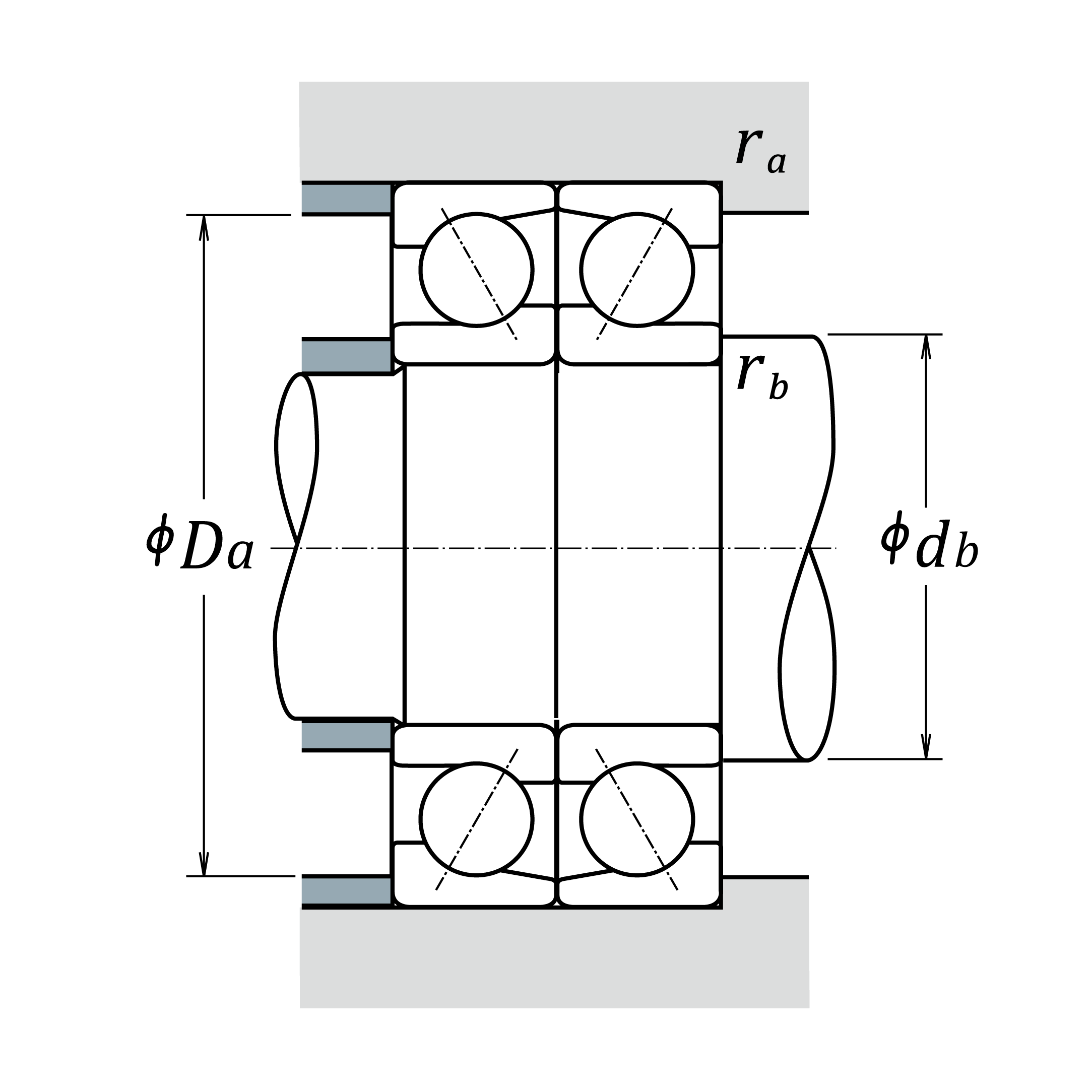

Abutment and Fillet Dimensions

db (min.) 13.2 mm
Da(max.) 25.5 mm
ra (min.) 0.3 mm
rb (max.) 0.15 mm

Calculation factors

Additional information

Mass

(approx.) 0.042 kg
