E11

Magneto Bearings

Magneto Bearings

Product Information

Designations

E11

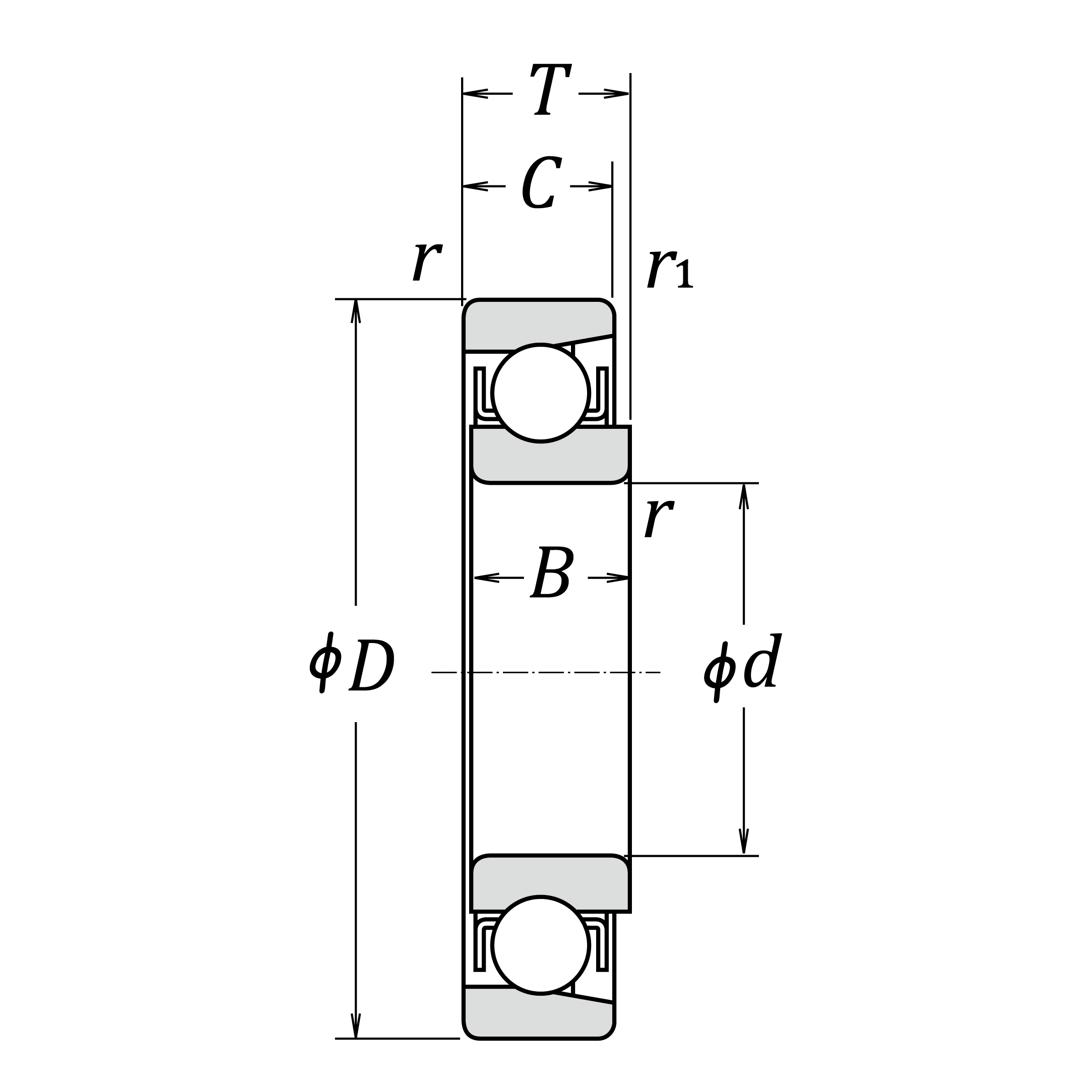

Boundary Dimensions

d	11	mm
D	32	mm
B、C、T	7	mm
r (min.）	0.3	mm
r1 (min.)	0.15	mm

Basic Load Ratings

C_r	4850	N	Basic dynamic load rating
C_0r	845	N	Basic static load rating

Speeds

Grease	22000	min-1
Oil	26000	min-1

Dimensions

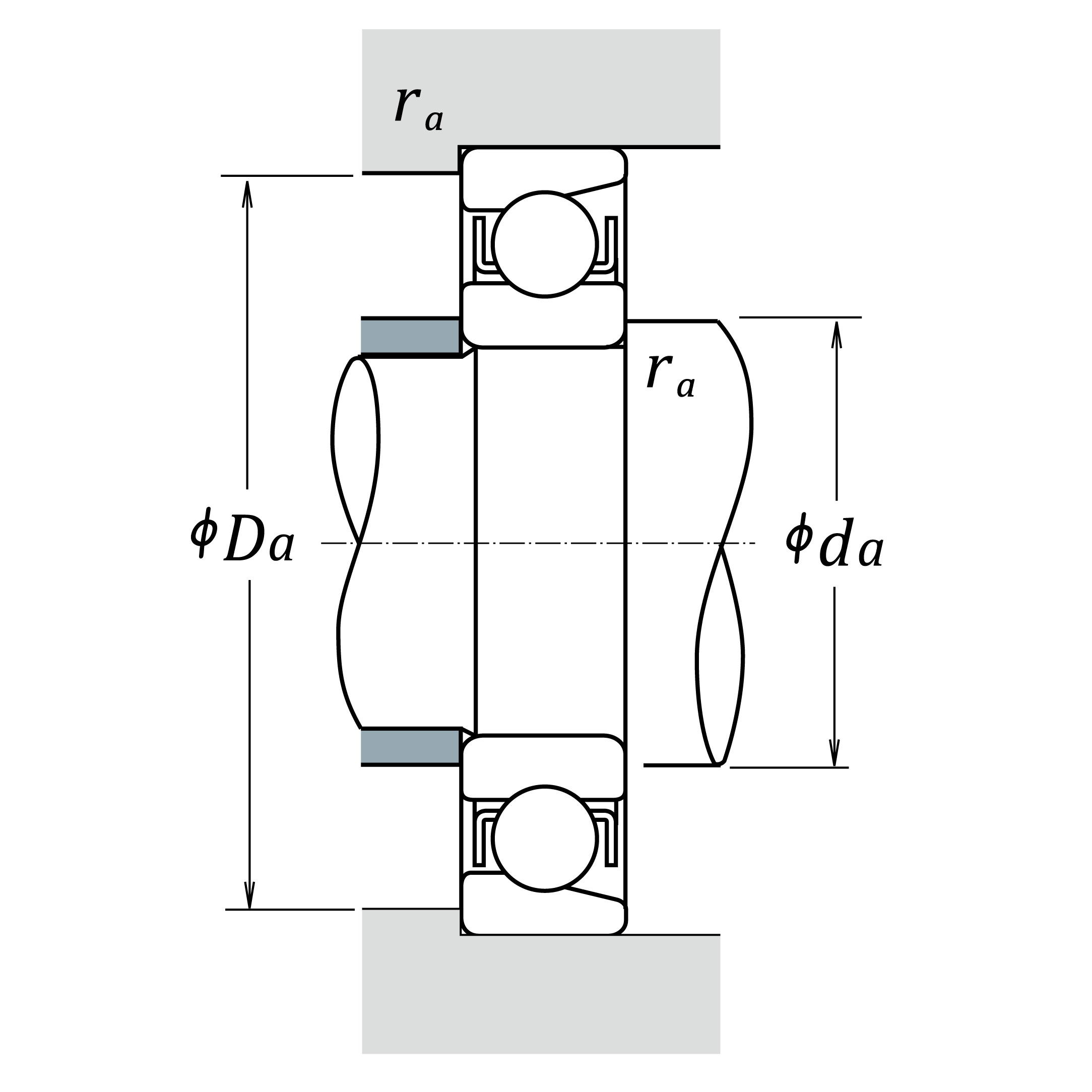

Abutment and Fillet Dimensions

da (min.)	13	mm
Da(max.)	30	mm
ra (max.)	0.3	mm

Calculation factors

Additional information

Mass

(approx.)

0.029

kg
