692

Extra Small Ball Bearings and Miniature Ball Bearings
Extra Small Ball Bearings and Miniature Ball Bearings

Product Information

Designations

692

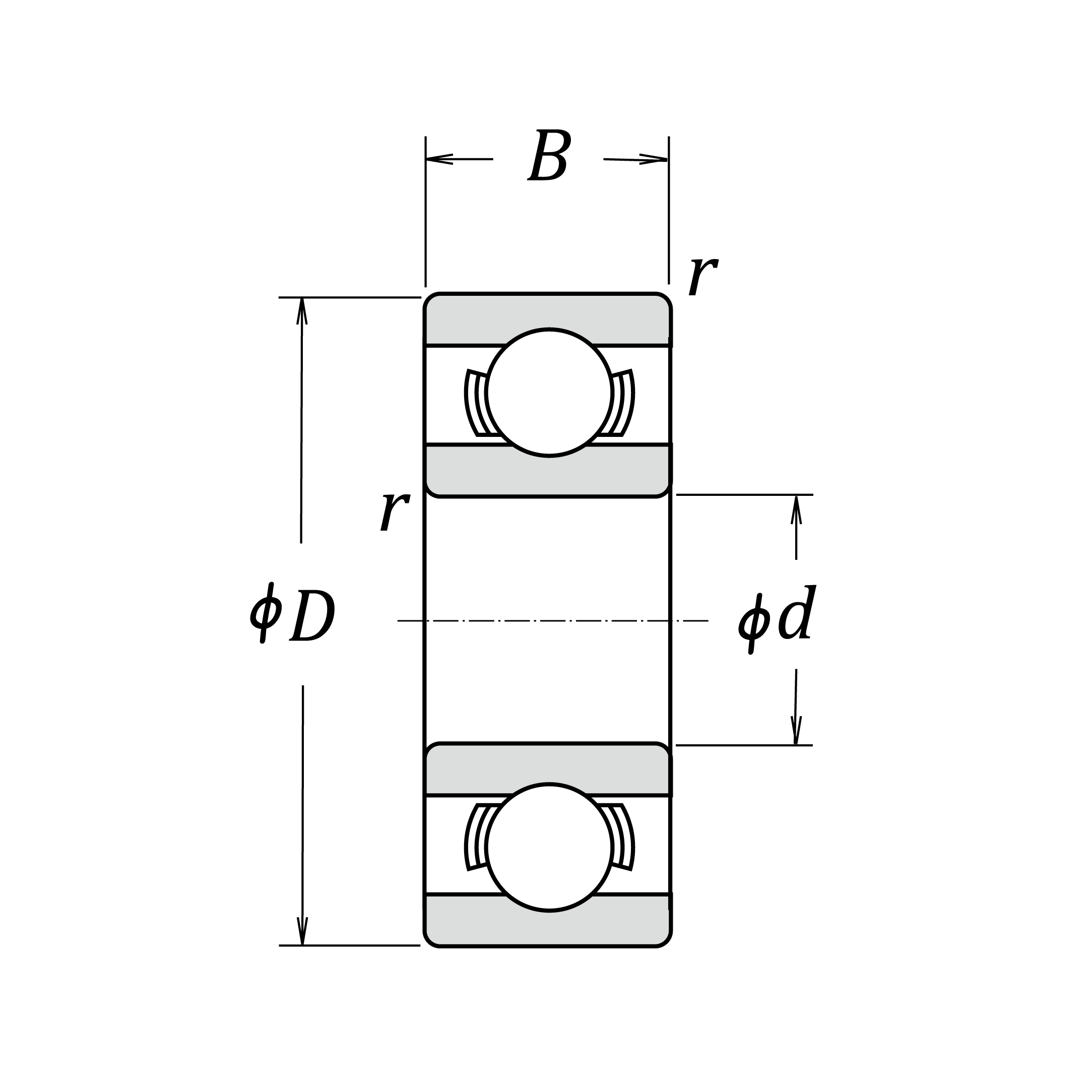

Boundary Dimensions

d 2 mm
D 6 mm
B 2.3 mm
r (min.） 0.15 mm

Basic Load Ratings

Cr 365 N Basic dynamic load rating
C0r 98 N Basic static load rating

Speeds

Grease 75000 min-1
Oil 90000 min-1

Dimensions

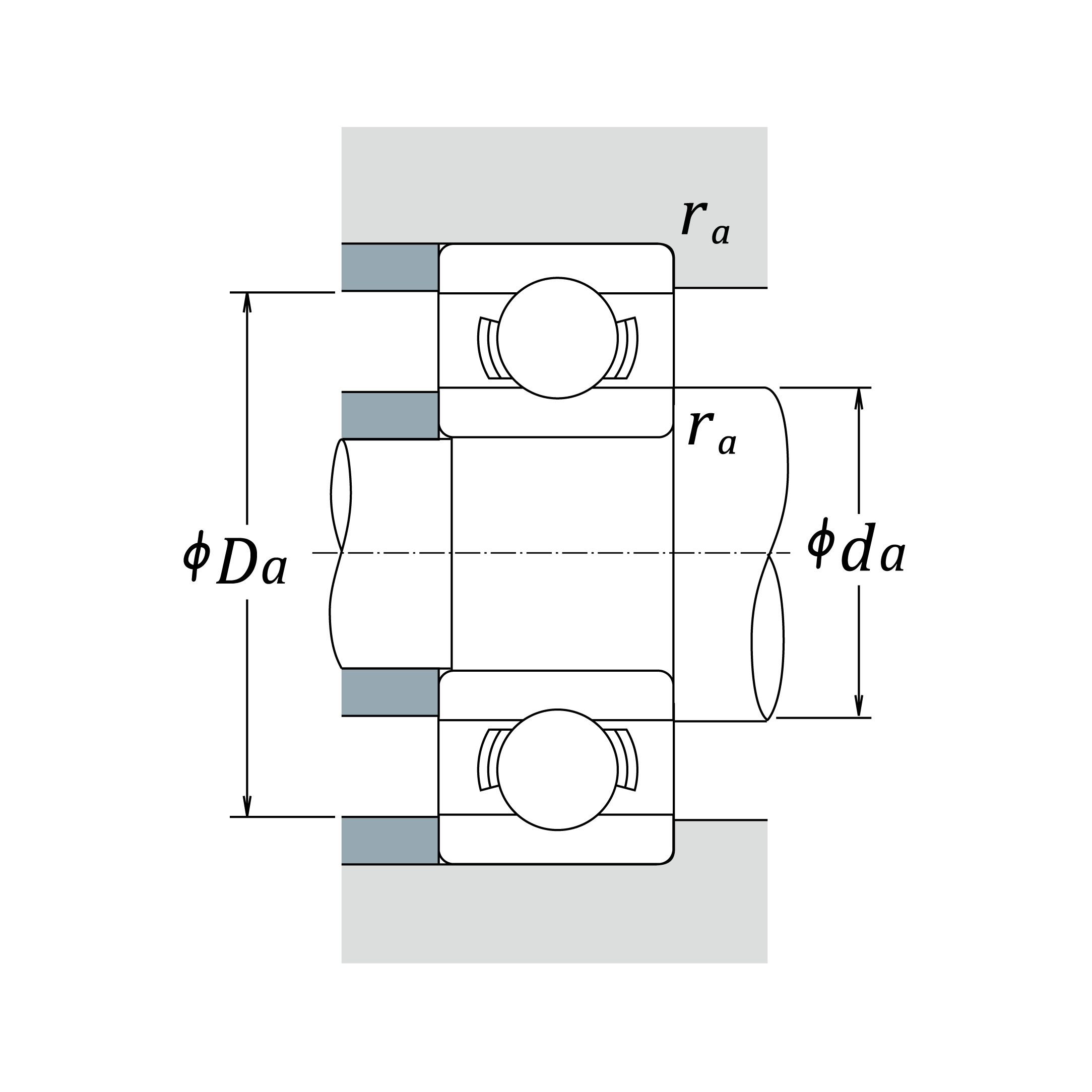

Abutment and Fillet Dimensions

da (min.) 3.2 mm
Da(max.) 4.8 mm
ra (max.) 0.15 mm

Calculation factors

Additional information

Z 6
DW 1.2 mm

Mass

(approx.) 0.00028 kg
